◆ Large-scale zoom ratio 12:1，adopted with infinite farness optical systems design .

◆ Various CCD adapters, magnification objectives, coaxial illumination, ring illumination are available for optional

◆ Includes MZDH0670, MZDH0670C, MZDH0670-D,MZDH0670C-D, MZDH0670C-PL, MZDH0670-AZ

◆ Especially used in electric equipments, LCD，LED and etc. for digital image observation, inspection and measurement


MZDH0670	MZDH0670C	MZDH0670C-PL	MZDH0670AY

MZDH0670	MZDH0670C	MZDH0670C-PL	MZDH0670AY

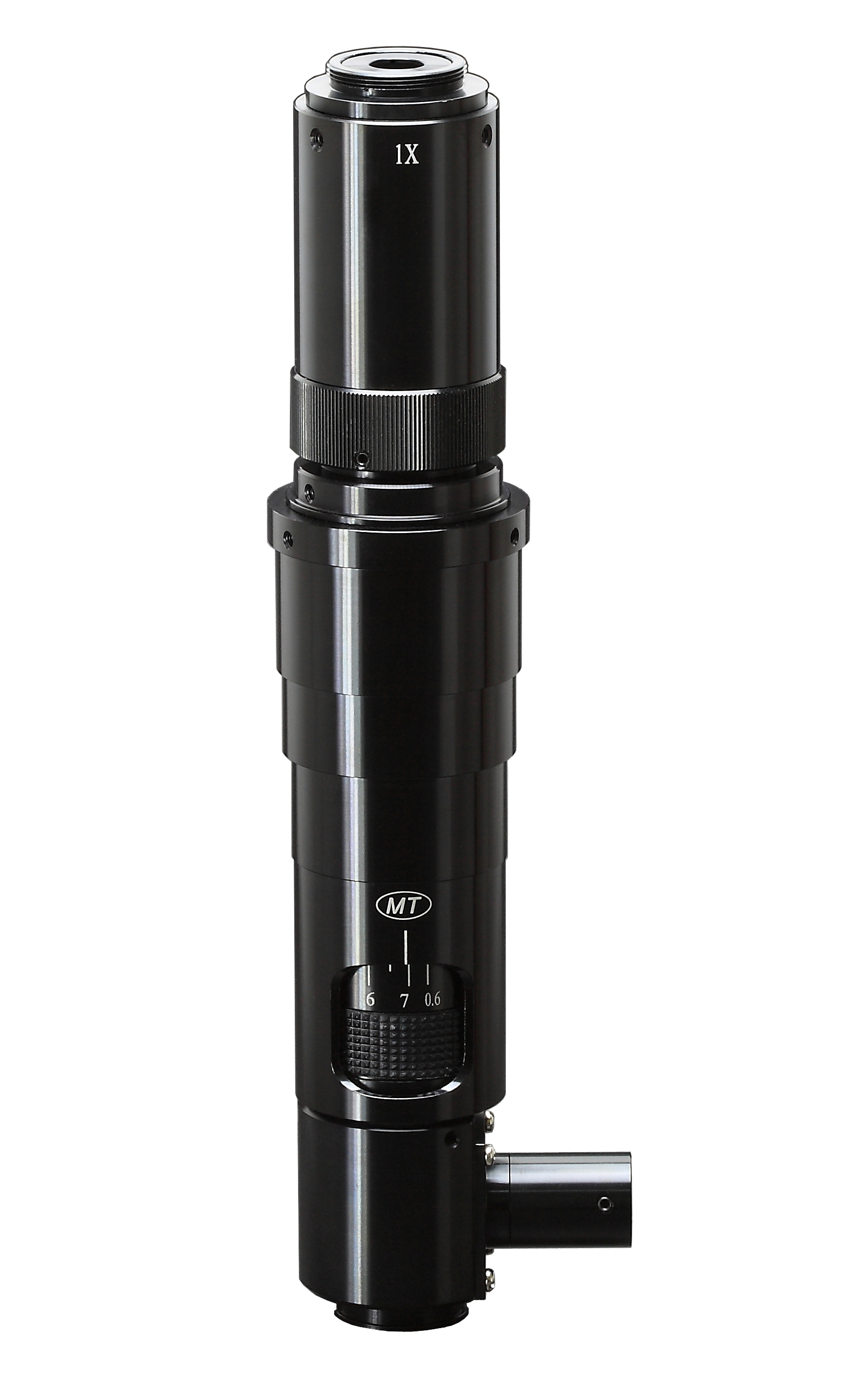

Main Body Diagram

Zoom range	0.58X~7.0X
Zoom ratio	12:1
WD	83mm（ 1X Objective）
Illumination	Adjustable high brightness , long life LED coaxial illumination; LED ring illumination
Main body and Holder matching dimension	Φ45mm
Mount	Standard CS-mount (distance between the bearing surface and the CCD plane is 12.5mm)

Magnification	NA	DOF	Resolution	TV Distortion	Fixed Dim.：Φ45mm Max compatible camera：1/2" CCD screw mount： 1 inch 32 button
0.58X	0.021	3.3mm	16.0μm	0.32%
2.0X	0.067	0.30mm	5.0μm	0.22%
4.0X	0.093	0.11mm	3.6μm	0.19%
7.0X	0.097	0.06mm	3.5μm	0.16%

Objectives	Item	CCD adapter
Objectives	Item	0.4X	0.5X	0.67X	1X	1.5X	2X
0.3X WD:293mm	Total Mag.	0.07X～0.84X	0.09X～1.05X	0.12X～1.4X	0.17X～2.1X	0.26X～3.15X	0.35X～4.2X
0.3X WD:293mm	FOV(mm)	50X66.67～4.3X5.7	40X53.33～3.43X4.57	30X40～2.57X3.43	21.1X28.2～1.71X2.29	13.85X18.46～1.14X1.52	10.3X13.71～0.86X1.14
0.4X WD:223mm	Total Mag.	0.096X～1.12X	0.12X～1.4X	0.16X～1.88X	0.24X～2.8X	0.36X～4.2X	0.48X～5.6X
0.4X WD:223mm	FOV(mm)	37.5X50～ 3.2X4.3	30X40～ 2.57X3.43	22.5X30～ 1.91X2.55	15X20～ 1.29X1.71	10X13.33～ 0.86X1.14	7.5X10～ 0.64X0.86
0.5X WD:175mm	Total Mag.	0.12X～1.4X	0.15X～1.75X	0.2X～2.34X	0.29X～3.5X	0.44X～5.25X	0.58X～7X
0.5X WD:175mm	FOV(mm)	30X40～2.57X3.43	24X32～2.06X2.74	18X24～1.5X2	12.4X16.5～1.03X1.37	8.2X10.91～0.69X0.91	6.2X8.3～0.51X0.69
0.6X WD:145mm	Total Mag.	0.144X～1.68X	0.18X～2.1X	0.24X～2.8X	0.36X～4.2X	0.54X～6.3X	0.72X～8.4X
0.6X WD:145mm	FOV(mm)	25X33.33～2.14X2.86	20X26.67～1.71X2.29	15X20～1.29X1.71	10X13.33～0.86X1.14	6.67X18.89～0.57X0.76	5X6.67～0.43X0.57
0.75X WD:117mm	Total Mag.	0.18X～2.1X	0.22X～2.62X	0.3X～3.5X	0.44X～5.25X	0.65X～7.87X	0.87X～10.5X
0.75X WD:117mm	FOV(mm)	20X26.67～1.7X2.3	16X21.33～1.37 X1.83	12X16～1.03 X1.37	8.2X10.9～0.69X0.91	5.53X7.38～0.46X0.61	4.1X5.52～0.34X0.46
0.9X WD:93mm	Total Mag.	0.216X～2.52X	0.27X～3.15X	0.36X～4.22X	0.54X～6.3X	0.81X～9.45X	1.08X～12.6X
0.9X WD:93mm	FOV(mm)	16.67X22.22～1.43X1.9	13.33X17.78～1.14 X1.52	10X13.33～ 0.85X1.14	6.67X8.89～ 0.57X0.76	4.44X5.93～0.38X0.51	3.33X4.44～ 0.29X0.38
1X WD:83mm	Total Mag.	0.24X～2.8X	0.3X～3.5X	0.4X～4.69X	0.58X～7X	0.87X～10.5X	1.16X～14X
1X WD:83mm	FOV(mm)	15X20～1.3X1.7	12X16～1.03X1.37	9X12～0.77X1	6.2X8.3～0.51X0.69	4.1X5.52～0.34X0.46	3.1X4.1～0.26X0.34
1.5X WD:54mm	Total Mag.	0.36X～4.2X	0.45X～5.25X	0.6X～7X	0.87X～10.5X	1.30X～15.75X	1.7X～21X
1.5X WD:54mm	FOV(mm)	10X13.33～0.86X1.14	8X10.67～0.69X0.91	6X8～0.5X0.7	4.13X5.52～0.34X0.46	2.77X3.69～0.23X0.3	2.1X2.82～0.17X0.23
2X WD:35mm	Total Mag.	0.48X～5.6X	0.6X～7X	0.8X～9.38X	1.16X～14X	1.7X～21X	2.3X～28X
2X WD:35mm	FOV(mm)	7.5X10～0.64X0.86	6X8～0.51X0.69	4.5X6～0.38X0.51	3.1X4.1～0.26X0.34	2.1X2.82～0.18X0.23	1.57X2.09～0.13X0.17
4.5X WD:16mm	Total Mag.	1.0X～12.6X	1.3X～15.8X	1.7X～21.1X	2.6X～31.5X	3.9X～47.3X	5.2X～63X
4.5X WD:16mm	FOV(mm)	3.5X4.6～0.29X0.38	2.8X3.7～0.23X0.30	2.1X2.7～0.17X0.23	1.4X1.8～0.11X0.15	0.92X1.23～0.08X0.10	0.69X0.92～0.06X0.08
Zoom body magnification range: 0.58X～7.0X

	Auxiliary illuminators	MLC1000，MLR25
	CCD adapters	0.4X, 0.5X, 0.67X, 1.0X(Standard outfits),1.5X,2.0X
	Objectives	0.3X,0.5X,0.75X,1X(Standard outfits),1.5X,2.0X,4.5X
	Infinite farness metallographic lens	Nikon, Olympus, Mitutoyo
	Stands	SD1-D ~ SD18-D
